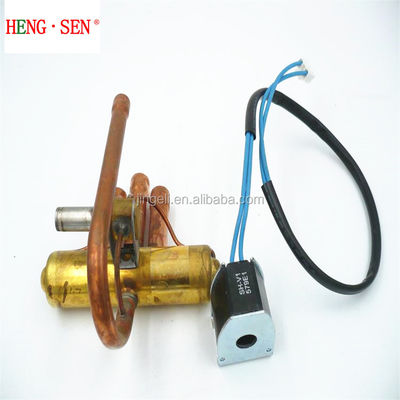

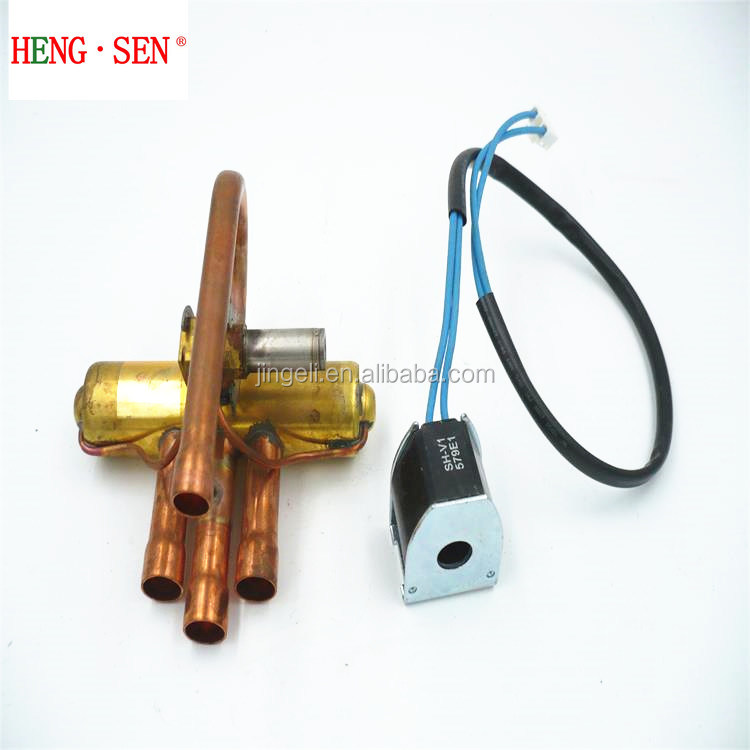

Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V

Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V

Products - HVAC Valve
  • High Light

    4 Way HVAC Valve

    ,

    Coil Solenoid HVAC Valve

    ,

    Brass 4 Way Reversing Valve

  • Warranty
    1 Year
  • Type
    Gate Valves
  • Customized Support
    NONE
  • Application
    Commercial Kitchen
  • Temperature Of Media
    Low Temperature
  • Power
    Solenoid
  • Media
    Gas
  • Port Size
    1/2 & 5/8
  • Structure
    Stop
  • Payment Terms
    T/T
  • Place of Origin
    Zhejiang, China
  • Brand Name
    N/M
  • Model Number
    SHF-9H-35U-P
  • Minimum Order Quantity
    10 pieces
  • Price
    $6.50/pieces
  • Packaging Details
    export packing : 40PCS/CTN

Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V

  • Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V
  • Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V
  • Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V
  • Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V
Get Price Contact Now

Air Condition 1P-2P Four Way Brass Reversing Valve With Coil Solenoid 220v





specifications: 4-way reversing valve is a component to switch the system between cooling and heating modes. By switching the flow of refrigerant, the air-conditioner can incorporate the functions of cooling in summer anheating in winter together. The 4-way reversing valve consists of main valve, pilot valve, and solenoid coil Main parameter:

1. Exteral leakage test pressure: 3.0 Mpa

2. Max.operating pressure: 3.0 Mpa

3. Water test pressure: With water pressure 4.

4. Mpa 4.Burst pressure:14.7Mpa

5. Ambient Temperature:Power on -20 to +50C

6. Relative Humidity: Less than95%RH

7. Fluid permission temperature:20 to +120°C

8. Maximum operation pressure differential: 2.25mPa
9.Refrigerants:R22,R407c,R134a,and R410a
10.Durability:10,000times
11.Coil Max.temperature:+120°C 12.Noise:Not more than 45dB(A) Coil's electric parameter:
(1).Rated voltage: No more than 380VAC, frequency: 50/60Hz
(2).Insulation resistance: z100MQ
(3).Dielectricity: Under 1500 voltage for one minute or 1800 voltage for one second.
No break down of flash over.
(4).Insulation class: B class
(5).Coil temperature rise:Not more than 80K.






Product Description

 Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V 0





name Specifications Nozzle(mm) function
four-way reversing valve 1HP
  1.5HP
  3HP
  5HP
  10HP
  15HP
  20HP



Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V 1



Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V 2Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V 3Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V 4Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V 5

Brass 4 Way 1P-2P HVAC Valve Gas Media With Coil Solenoid 220V 6



FAQ



Q1? What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.


Q2:?You are factory or trading company?
We have fitting factory which is located in Zhejiang zhuji city. We work with other factories for HVAC parts



Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.



Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Most of the fitting samples are free , the express charge shall be paid by the buyer.



Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
