R22 R134a R404A Condensing Unit Parts , Air Conditioner Thermal Expansion Valve

R22 R134a R404A Condensing Unit Parts , Air Conditioner Thermal Expansion Valve

Products - Condensing Unit Parts
  • High Light

    R134a Condensing Unit Parts

    ,

    R404A Condensing Unit Parts

    ,

    Air Conditioner Thermal Expansion Valve

  • Applicable Refrigerants
    R22, R134a, R404A.....
  • Applicable Medium
    R22:-40°C~+10°C；R134a：-30°C~+10°C；R404A：-40°C~+10°C
  • Norminal Capacity
    2.5KW~15.5KW,1.8KW~10.5KW,1.6KW~9.1KW
  • Adjusrable Range Of Superheat
    2°C~8°C
  • Ex-Works Static Heat Adjustment
    3.5°C
  • Media
    GAS
  • Structure
    Control
  • Place of Origin
    China
  • Brand Name
    HONGSEN
  • Certification
    CE,UL,CQC,ISO9001,ISO14001
  • Model Number
    HSTHW
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    Each in one box, then in export carton.
  • Delivery Time
    5 days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    20000 pcs per month

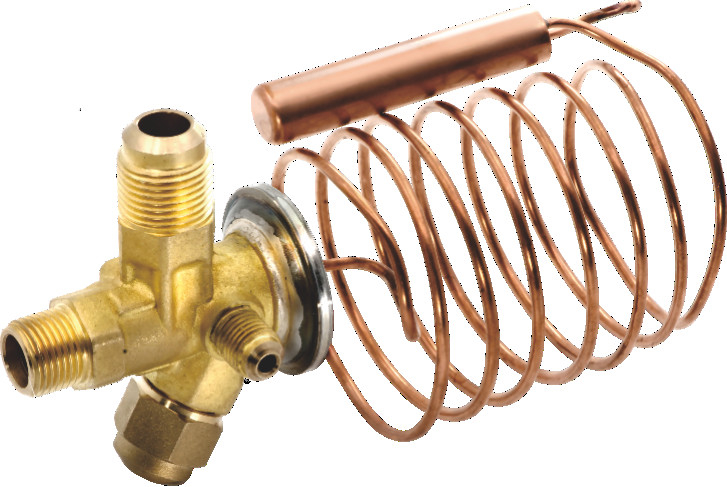

R22 R134a R404A Condensing Unit Parts , Air Conditioner Thermal Expansion Valve

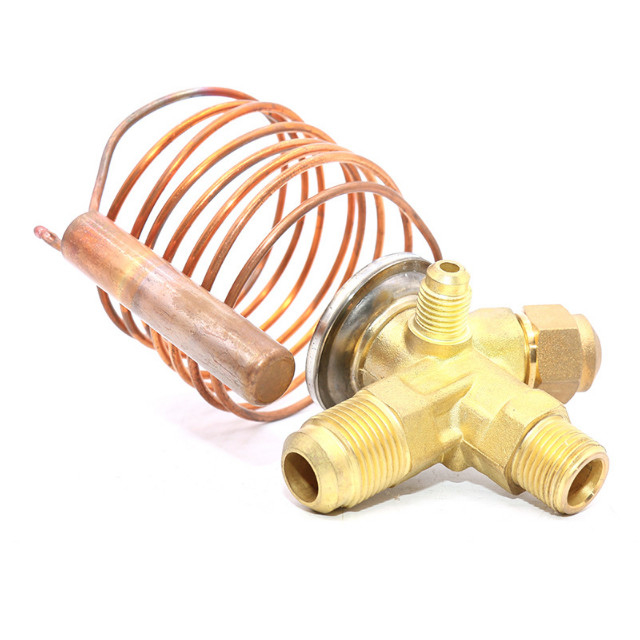

  • R22 R134a R404A Condensing Unit Parts , Air Conditioner Thermal Expansion Valve
  • R22 R134a R404A Condensing Unit Parts , Air Conditioner Thermal Expansion Valve
Get Price Contact Now

THTHW Mini Thermal Expansion Valve For Refrigeration Refrigeration And Air Conditioner Service Valve Types/Safety Relief



Product Description:

· T-type expansion valve is a novel thermostatic expansion valve with replaceable valve element

· T-type expansion valve is used for adjusting the supply quantity of liquid refrigerant in evaporator

· T-type expansion valve is particularly suitable for supplying liquid refrigerant in dry-type evaporator

· T-type expansion value has autocontrol through regulating the-superheating degree of refrigerant.



Features:



·Large scope of evaporating temperature.
.be capable of providing MOP function so as not to damage the compressor motor due to overhigh evaporating pressure.
Have two forms of internal and external balance, be capable of removing influence brought loss of evaporator pressure effectively.
.Have the membrane structure with invention patent, greatly improve the working performance at low temperature.
. he bonnet adopts a secondary sealing structure to ensure zero external leakage.
· replaceable valve element component with 100-mesh filter has convenient storage, matching and
maintenance
The temperature wrap has mixed charging technology so as to have the feature of superheating degree within the whole evaporating temperature scope

· Capillary length of T-type thermostatic expansion valve:1.5m in atandard; under special situation,it can be customized based on clients' requirements.



Structure:

R22 R134a R404A Condensing Unit Parts , Air Conditioner Thermal Expansion Valve 0

1,Gas tank head piece; 2,regulating spring; 3,spring seat; 4,transfer bar component; 5,valve body; 6,dust cap (4 points); 7,O-type ring; 8,regulating stem; 9,value bonnet; 10,valve element(No:1#~6#); 11,filter screen component; 12,dust cap (2 points);13,dust cap(3 points);14,valve element cover; 15,external balance interface





R22 R134a R404A Condensing Unit Parts , Air Conditioner Thermal Expansion Valve 1

1,Gas tank head piece; 2,regulating spring; 3,spring seat; 4,transfer bar component; 5,valve body; 6,dust cap; 7,O-type ring; 8,regulating stem; 9,value bonnet; 10,valve element(No:1#~6#); 11,filter component; 12,valve element cover



R22 R134a R404A Condensing Unit Parts , Air Conditioner Thermal Expansion Valve 2





Replaceable element model
Valve element NO. (TR)Nominal refrigerating capacity(TR) (KW)Nominal refrigerating capacity(KW)
R22 R134a R404A R410A R22 R134a R404A R410A
NO.1 0.7 0.5 0.45 0.92 2.5 1.8 1.6 3.25
NO.2 1 0.8 0.6 1.55 3.5 2.6 2.1 5.45
NO.3 1.5 1.3 1.2 2.5 5.2 4.6 4.2 8.7
NO.4 2.3 1.9 1.7 4 8 6.7 6 14.15
NO.5 3 2.5 2.2 4.9 10.5 8.6 7.7 17.28
NO.6 4.5 3.0 2.6 5.7 15.5 10.5 9.1 19.95
The valve element can be exchanged with the valve element of Danfoss in corresponding number and can’t exchange with other valve elements of other plants.







Model of main value body
Refrigerant Model Pressure balance Thread Nominal Refrigerating Capacity
Intet Outlet Outside Balance End TR KW
R22 TH22 Internal balance 3/8 SAE 1/2 SAE   0.7~4.5 2.5~15.5
R22 TH22W External balance 3/8 SAE 1/2 SAE 1/4 SAE TR KW
R134a TH134 Internal balance 3/8 SAE 1/2 SAE   0.5~3.0` 1.8~10.5
R134a TH134W External balance 3/8 SAE 1/2 SAE 1/4 SAE
R404A TH404 Internal balance 3/8 SAE 1/2 SAE
R404A TH404W External balance 3/8 SAE 1/2 SAE 1/4 SAE 0.45~2.6 1.6~9.1
R410a TH410 Internal balance 3/8 SAE 1/2 SAE
R410a TH410W External balance 3/8 SAE 1/2 SAE 1/4 SAE 0.92~5.7 3.25~19.95



FAQ:

Q:Are you manufacturer?

A:Yes,we are professional manufacturer for refrigeration tools and A/C parts



Q:We are one big company, and want to design our special package for this product, is it ok?
A:Another customized package is welcome.



Q: How about the MOQ?

A: 1 unit is ok.
