Pancake Coil Refrigeration Copper Tubing Polished Surface For Air Conditioner
-
High Light
Pancake Coil Refrigeration Copper Tubing
,Polished Refrigeration Copper Tubing
,Air Conditioner Pancake Coil Copper Tube
-
TypePancake Coil Copper Pipe
-
Ultimate Strength (≥ MPa)205
-
Cu (Min)99.9%
-
SurfaceMill,polished,bright,oiled,hair Line,brush,mirror,sand Blas
-
GradeCopper
-
Ultimate Strength (≥ MPa)315
-
Place of OriginZhejiang, China
-
Brand NameHENG.SEN
-
CertificationROHS
-
Model NumberC12200
-
Minimum Order Quantity10KG
-
Packaging Detailsexport packing
-
Delivery Time5-15 days
-
Supply Ability1000 Piece/Pieces per Week
Pancake Coil Refrigeration Copper Tubing Polished Surface For Air Conditioner
Airconditioner Pancake Coil Seamless Copper Pipe
Specification:
| COPPER COIL STANDARD ASTM B280 SIZE | ||||||
| Outsdie Diameter | Thickness | Nominal Weight(kgs) | ||||
| Inch | mm | Inch | mm | 15m | 30m | 50' |
| 3/16" | 4.76 | 0.03 | 0.76 | 1.28 | 2.55 | 1.30 |
| 1/4" | 6.35 | 0.03 | 0.76 | 1.78 | 3.57 | 1.81 |
| 5/16" | 7.94 | 0.032 | 0.81 | 2.43 | 4.85 | 2.46 |
| 3/8" | 9.52 | 0.032 | 0.81 | 2.97 | 5.93 | 3.01 |
| 1/2" | 12.7 | 0.032 | 0.81 | 4.04 | 8.09 | 4.11 |
| 5/8" | 15.87 | 0.035 | 0.89 | 5.60 | 11.20 | 5.69 |
| 3/4" | 19.05 | 0.035 | 0.89 | 6.79 | 13.58 | 6.90 |
| 7/8" | 22.23 | 0.045 | 1.14 | 10.10 | 20.20 | 10.26 |
| COPPER COIL STANDARD EN12735-1 SIZE | ||||||
| Outsdie Diameter | Thickness | Nominal Weight(kgs) | ||||
| mm | mm | 15m | 30m | |||
| 6 | 0.8 | 1.75 | 3.49 | |||
| 8 | 0.8 | 2.42 | 4.84 | |||
| 10 | 0.8 | 3.09 | 6.18 | |||
| 12 | 0.8 | 3.76 | 7.53 | |||
| 16 | 1 | 6.30 | 12.60 | |||
| 18 | 1 | 7.14 | 14.28 | |||
| 22 | 1 | 8.82 | 17.64 | |||
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

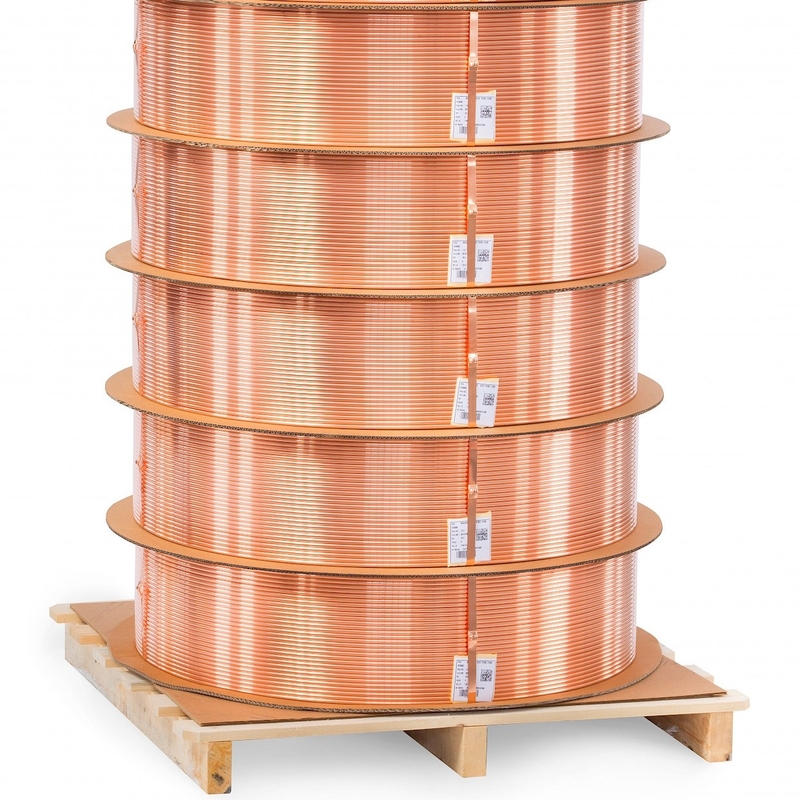

①Pancake coil copper tube: individually sealed by plastic bag, and packed by carton or box of 3-20 rolls.
②LWC (plain) copper tube: with unit-weight 100kgs more and packed individually by reel, 6-7 coils packed by one pallet.
③Straight copper tube: Each piece end capped, bundled with plastic bag, then put in the wooden box or container.
