High Light
50Hz Air Vacuum Pump
,Multi Scene Air Vacuum Pump
,1.5CFM Rotary Vacuum Pump
-
StructureSingle Stage Pump
-
Power1/4Hp
-
Ultimate Vacuum5pa
-
Number Of Stage1
-
UsageAir Vacuum
-
Electric220V/50Hz Or 110V/60Hz
-
Flow Rate50Hz 1.5CFM 60Hz 1.8CFM
-
Inlet Port1/4”
-
Place of OriginChina
-
Brand NameHENG.SEN
-
CertificationCE,ETL,CQC,ISO9001
-
Model NumberHSVP115SV
-
Minimum Order Quantity1 SET
-
Packaging DetailsCarton
-
Delivery Time5-15 days
-
Payment TermsL/C, T/T, Western Union, MoneyGram
-
Supply Ability15000 sets/month
Rotary 50Hz Air Vacuum Pump Multi Scene 1.5CFM 1/4Hp 1 Stage
50Hz Rotary Vane 1 Stage 1.5CFM 1/4Hp Air Vacuum Pump
What is a rotary vane pump used for:
Rotary Vane pumps are commonly used as high-pressure hydraulic pumps and in automobiles, including supercharging, power-steering, air conditioning and automatic-transmission pumps. Pumps for mid-range pressures include applications such as carbonators for fountain soft-drink dispensers and espresso coffee machines.
Technical Data:
| Model | VP115(VP-1) | |
| Flow Rate | 50Hz | 1.5CFM |
| 42L/min | ||
| 60Hz | 1.8CFM | |
| 50L/min | ||
| Ultimate vacuum | 5Pa | |
| 150 microns | ||
| Power | 1/4HP | |
| Lnket Port | 1/4"Flare | |
| Oil Capacity | 280ml | |
| Dimensions(mm) | 270*119*216 | |
| Weight | 4.6kg | |
Plug and Valtage Can Choose:
| Item | Description | Item | Description |
| 5011 | China Plug | 5061 | South Africa Plug |
| 5021 | China Plug | 5071 | Europe Plug |
| 5031 | Britain Plug | 5081 | Japan Plug |
| 5041 | American Plug | 5091 | Italy Plug |
| 5051 | Australia Plug |

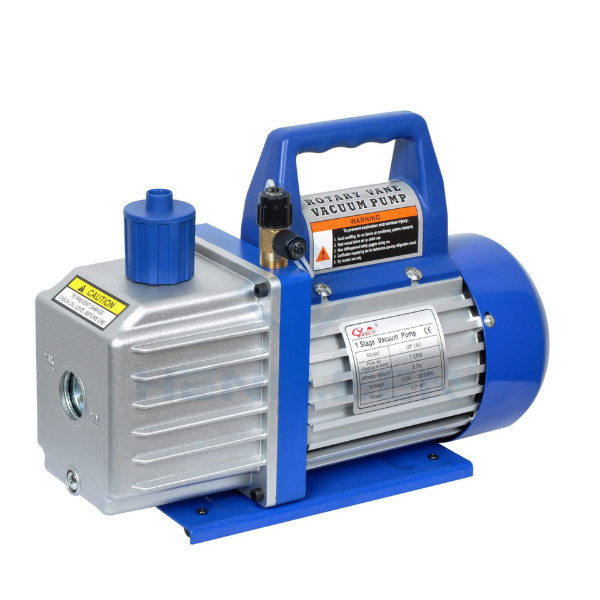

product photo:
| Model | VP115(VP-1) | VP125(VP-1.5) | VP125(VP-1.5) | VP125(VP-1.5) | VP125(VP-1.5) | VP125(VP-1.5) | VP125(VP-1.5) | |
| Flow Rate | 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
| 42L/min | 70 L/min | 100L/Mmin | 128L/Mmin | 170L/Mmin | 226L/Mmin | 283L/Mmin | ||
| 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
| 50L/min | 84 L/min | 114 L/min | 142 L/min | 198 L/min | 254 L/min | 340 L/min | ||
| Ultimate vacuum | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | 5Pa | |
| 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | ||
| Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | |
| Lnket Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"&3/8"Flare | 1/4"&3/8"Flare | |
| Oil Capacity | 280ml | 260ml | 330ml | 310ml | 450ml | 650ml | 800ml | |
| Dimensions(mm) | 270*119*216 | 260x122x220 | 278*119*216 | 278*119*216 | 320*134*232 | 370*140*250 | 390*140*250 | |
| Weight | 4.6kg | 5kg | 5.6kg | 6kg | 7.8kg | 12.3kg | 12.8kg | |
