HVAC 7CFM Dual Stage Vacuum Pump , Durable Rotary Vane Vacuum Pump

HVAC 7CFM Dual Stage Vacuum Pump , Durable Rotary Vane Vacuum Pump

Products - Air Vacuum Pump
  • High Light

    HVAC Dual Stage Vacuum Pump

    ,

    7CFM Dual Stage Vacuum Pump

    ,

    Durable Rotary Vane Vacuum Pump

  • Place Of Origin
    Zhejiang, China
  • Horsepower
    3/4HP
  • Application
    Automotive Industry, HVAC OEM, Industrial Boilers, Machine
  • Power Source
    Electric
  • Structure
    Rotary Vane Vacuum Pump
  • Outlet Size
    1/4"&3/8"
  • Power
    3/4HP
  • Motor
    Copper Wire Motor
  • Place of Origin
    China
  • Brand Name
    HENG.SEN
  • Certification
    CE,ETL,CQC,ISO9001
  • Model Number
    VP260 VP270
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    Carton
  • Delivery Time
    5-15 days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    15000 sets/month

HVAC 7CFM Dual Stage Vacuum Pump , Durable Rotary Vane Vacuum Pump

  • HVAC 7CFM Dual Stage Vacuum Pump , Durable Rotary Vane Vacuum Pump
  • HVAC 7CFM Dual Stage Vacuum Pump , Durable Rotary Vane Vacuum Pump
  • HVAC 7CFM Dual Stage Vacuum Pump , Durable Rotary Vane Vacuum Pump
Get Price Contact Now

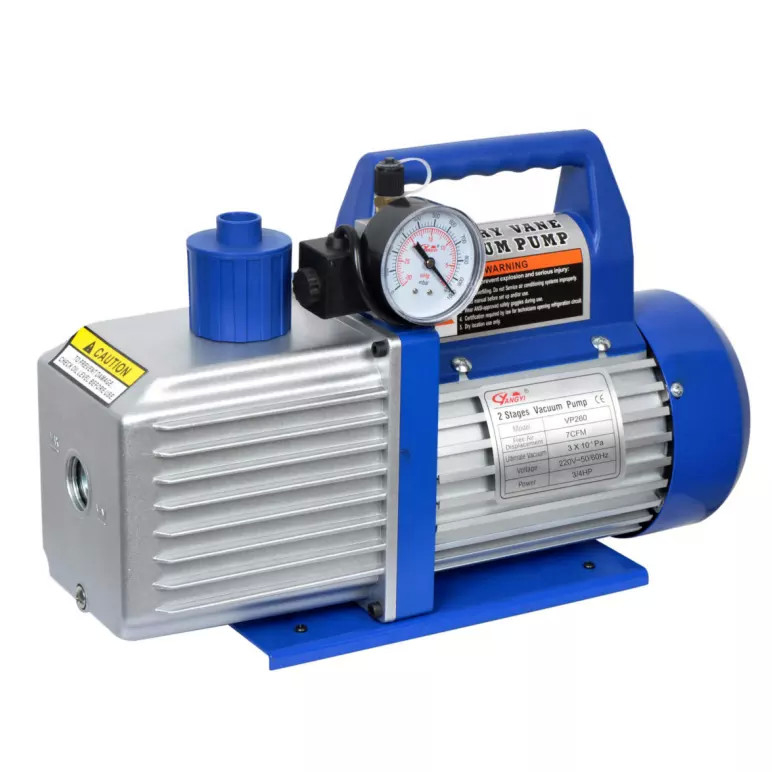

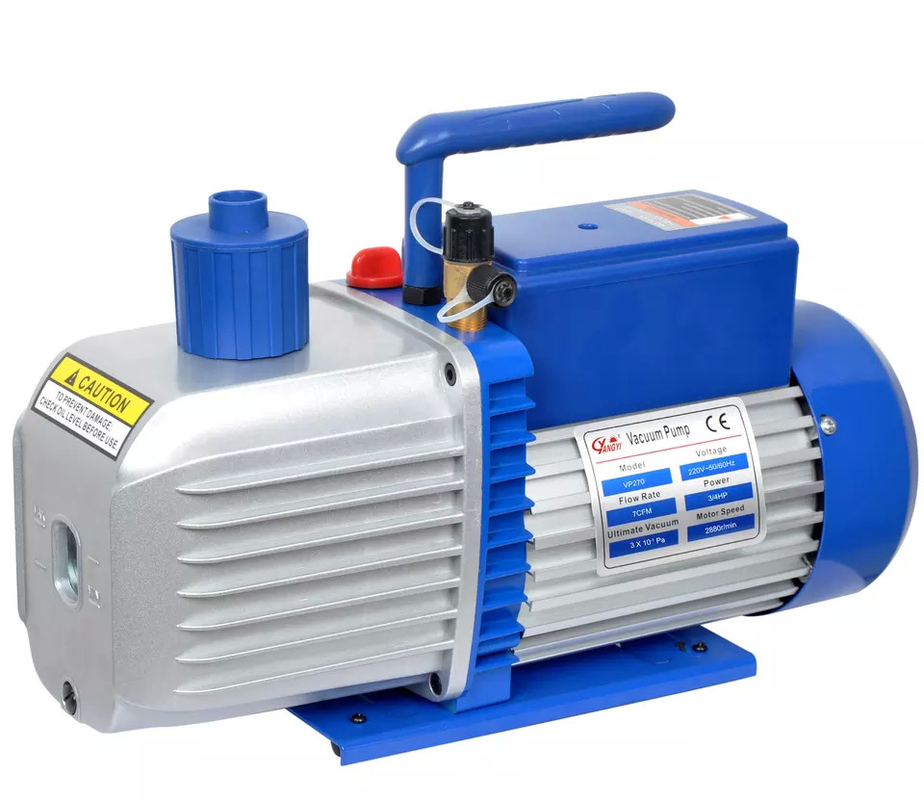

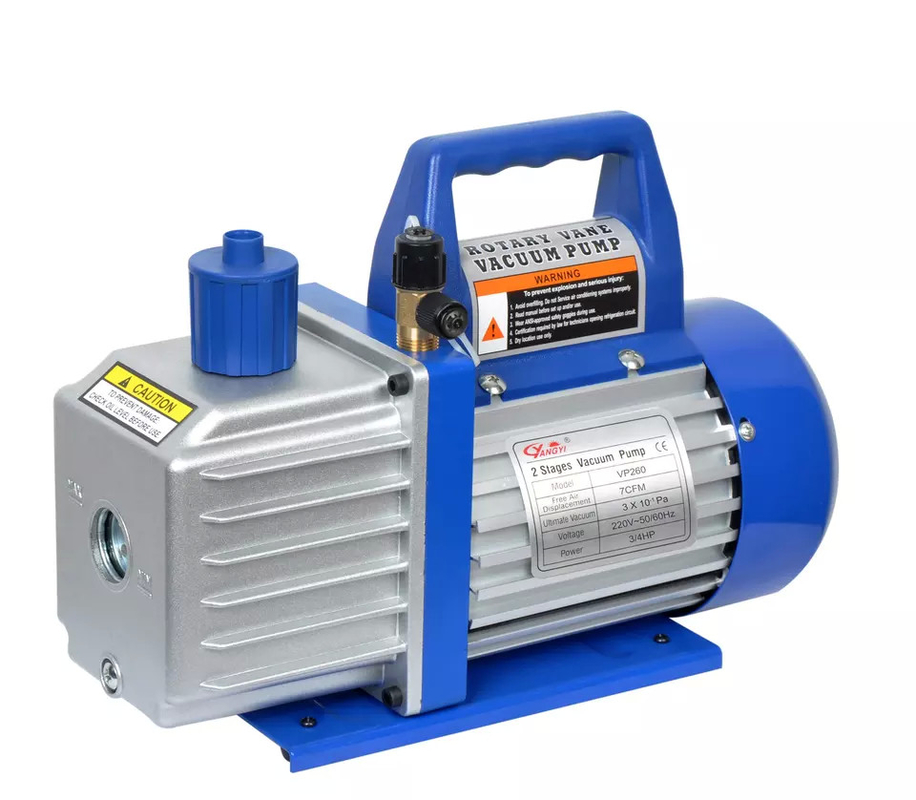

Dual stage Rotary vane vacuum pump 7 CFM 3/4 HP VP260 VP270


Product Description

NEW Serise Vacuum Pump.

NEW serise vacuum pump adopts original high-efficiency motor technology. Under the same pumping rate requirement, the weight is greatly reduced, and it is more convenient to carry
High ultimate vacuum, high pumping rate
Integral cylinder structure,High precision,High ultimate vacuum, high pumping rate

●High efficie
The oil mist is filtered by filter cotton,which effectively reduces the oil mist and is
convenient for maintenance and replacement.

●Comfortable and firm handle
Exquisite shape of the handle, using soft rubber material, feel more comfortable

●Chic appearance
The square casing and wind cover make the appearance more unique



Parameter
Model
Single Stage Vacuum Pump
SVB115
VB120
VB130
VB140
VB160
VB180
VB1200
Voltage
220V 50Hz,110V 60Hz
Flow Rate(m³/h)
3.6m²/h
3.6m²/h
5.4m²/h
7.2m²/h
10.8m²/h
14.4m²/h
21.6m²/h
Motor Power(W)
150W
150W
180W
250W
370W
550W
750W
Inlet Port
1/4"Flare
1/4"&3/8"Flare
Dimension(mm)
252x104x
207
281x123x230
281x123x230
305x123x
230
332x129x
242
383x138x
255
383x138x
255
Oil Capacity(ml)
210ml
280ml
280ml
280ml
450ml
780ml
780ml
Net Weight(kg)
4.5kg
5.2
5.8
7.5
9.3
14
14
Model
Double Stage Vacuum Pump
VB220
VB230
VB240
VB260
VB280
VB2200
Voltage
220V 50Hz,110V 60Hz
Flow Rate(m³/h)
3.6m²/h
5.4m²/h
7.2m²/h
10.8m²/h
14.4m²/h
21.6m²/h
Motor Power(W)
250W
370W
370W
550W
750W
1100W
Inlet Port
1/4"
1/4"&3/8"
Dimension
(mm)
305x123x 230
332x129x 242
332x129x 242
332x129x 242
383x138x 255
383x138x 255
Oil Capacity
(ml)
280
360
360
360
620
620
Net Weight(kg)
8kg
8.3kg
10kg
10kg
15.5kg
15.5kg
