High Light
2Pa Air Vacuum Pump
,110V Air Vacuum Pump
,Single Stage Refrigeration Vacuum Pump
-
StructureDual Stage Pump
-
Power1/4Hp
-
Ultimate Vacuum2Pa
-
UsageAir Vacuum
-
Electric220V/50Hz Or 110V/60Hz
-
Flow Rate50Hz 1.5CFM 60Hz 1.8CFM
-
Inlet Port1/4”Flare
-
Weight4.7KG
-
Place of OriginChina
-
Brand NameHENG.SEN
-
CertificationCE,ETL,CQC,ISO9001
-
Model NumberHSVP115SV
-
Minimum Order Quantity1 SET
-
Packaging DetailsCarton
-
Delivery Time5-15 days
-
Payment TermsL/C, T/T, Western Union, MoneyGram
-
Supply Ability15000 sets/month

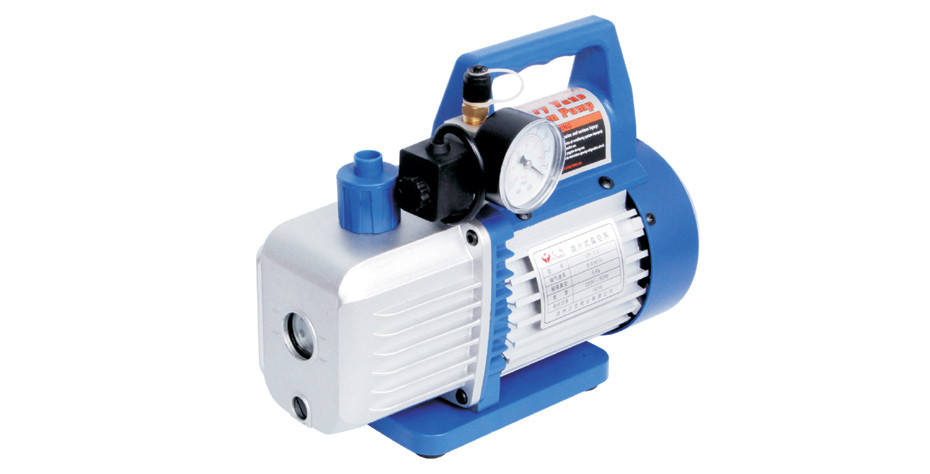

2Pa Refrigeration Air Vacuum Pump 220V/110V Single Stage With Gauge
VP115 R410a single stage refrigeration price vacuum pump valve with gauge
What is a rotary vane pump used for:
Rotary Vane pumps are commonly used as high-pressure hydraulic pumps and in automobiles, including supercharging, power-steering, air conditioning and automatic-transmission pumps. Pumps for mid-range pressures include applications such as carbonators for fountain soft-drink dispensers and espresso coffee machines.
410a Single Stage Dual Stage Vacuum Pump
1. High efficiency filter,smoke less.
2. Copper wire motor,long service life.
3. Big sight glass for monitoring oil level,prevent oil lack.
4. The overall design of pump and motor is more portable.
5. Low maintenance cost
Technical Data:
| Model | VP115SV | |
| Flow Rate | 50Hz | 1.5CFM |
| 42L/min | ||
| 60Hz | 1.8CFM | |
| 50L/min | ||
| Ultimate vacuum | 2Pa | |
| 150 microns | ||
| Power | 1/4HP | |
| Lnket Port | 1/4"Flare | |
| Oil Capacity | 320ml | |
| Dimensions(mm) | 270*129*216 | |
| Weight | 4.7kg | |
Plug and Valtage Can Choose:
| Item | Description | Item | Description |
| 5011 | China Plug | 5061 | South Africa Plug |
| 5021 | China Plug | 5071 | Europe Plug |
| 5031 | Britain Plug | 5081 | Japan Plug |
| 5041 | American Plug | 5091 | Italy Plug |
| 5051 | Australia Plug |
product photo:
| Model | VP115SV | VP125SV | VP135SV | VP145SV | VP160SV | VP180SV | VP1100SV | |
| Flow Rate | 50Hz | 1.5CFM | 2.5CFM | 3.5CFM | 4.5CFM | 6CFM | 8CFM | 10CFM |
| 42L/min | 70 L/min | 100L/Mmin | 128L/Mmin | 170L/Mmin | 226L/Mmin | 283L/Mmin | ||
| 60Hz | 1.8CFM | 3CFM | 4CFM | 5CFM | 7CFM | 9CFM | 12CFM | |
| 50L/min | 84 L/min | 114 L/min | 142 L/min | 198 L/min | 254 L/min | 340 L/min | ||
| Ultimate vacuum | 2Pa | 2Pa | 2Pa | 2Pa | 2Pa | 2Pa | 2Pa | |
| 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | 150 microns | ||
| Power | 1/4HP | 1/4HP | 1/3HP | 1/3HP | 1/2HP | 3/4HP | 1HP | |
| Lnket Port | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | 1/4"Flare | |
| Oil Capacity | 320ml | 300ml | 330ml | 320ml | 450ml | 650ml | 800ml | |
| Dimensions(mm) | 270*129*216 | 270*129*216 | 278*129*216 | 278*129*216 | 320*144*232 | 370*150*250 | 390*150*250 | |
| Weight | 4.7kg | 5.1kg | 5.7kg | 6.1kg | 7.9kg | 12.4kg | 12.9kg | |
Our products are sold all over the world, you can rest assured.
