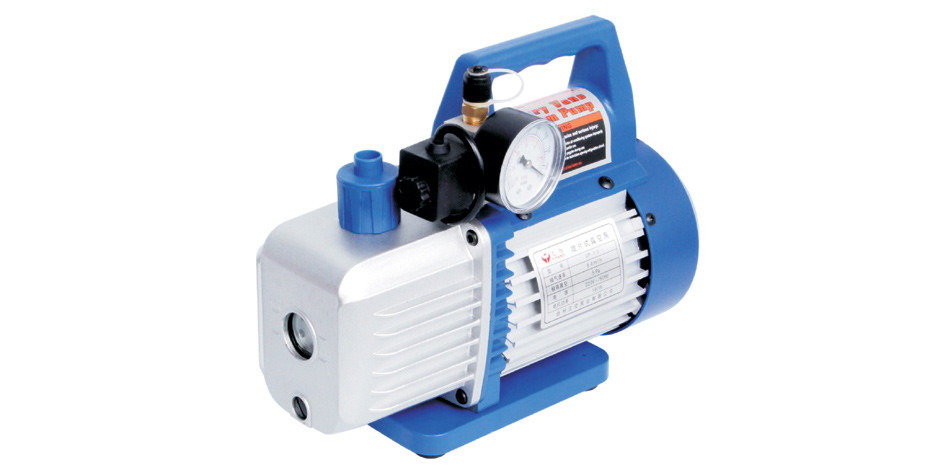

Multipurpose 5CFM Air Vacuum Pump 5CFM VP245 Double Stage With Solenoid Valve

Multipurpose 5CFM Air Vacuum Pump 5CFM VP245 Double Stage With Solenoid Valve

  • High Light

    Multipurpose Air Vacuum Pump

    ,

    5CFM Air Vacuum Pump

    ,

    Double Stage Solenoid Vacuum Pump

  • Structure
    Dual Stage Pump
  • Power
    1/2Hp
  • Ultimate Vacuum
    3*10Pa
  • Electric
    220V/50Hz Or 110V/60Hz
  • Flow Rate
    50Hz 4.5CFM 60Hz 5CFM
  • Inlet Port
    1/4”Flare
  • Weight
    8.6KG
  • Oil Capacity
    400ml
  • Place of Origin
    China
  • Brand Name
    HENG.SEN
  • Certification
    CE,ETL,CQC,ISO9001
  • Model Number
    HSVP245SV
  • Minimum Order Quantity
    1 SET
  • Packaging Details
    Carton
  • Delivery Time
    5-15 days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    15000 sets/month

Multipurpose 5CFM Air Vacuum Pump 5CFM VP245 Double Stage With Solenoid Valve

Double stage vacuum pump 4.5CFM VP245 with Vacuum Gauge and solenoid valve



What is a rotary vane pump used for:

Rotary Vane pumps are commonly used as high-pressure hydraulic pumps and in automobiles, including supercharging, power-steering, air conditioning and automatic-transmission pumps. Pumps for mid-range pressures include applications such as carbonators for fountain soft-drink dispensers and espresso coffee machines.



410a Single Stage Dual Stage Vacuum Pump
1.High efficiency filter,smoke less.
2.Copper wire motor,long service life.
3.Big sight glass for monitoring oil level,prevent oil lack.
4.The overall design of pump and motor is more portable.
5.Low maintenance cost

Technical Data:



Model VP245SV
Flow Rate 50Hz 4.5CFM
128L/Mmin
60Hz 5CFM
142 L/min
Ultimate vacuum   3*10Pa
25 microns
Power 1/2HP
Lnket Port 1/4"Flare
Oil Capacity 400ml
Dimensions(mm) 320*144*232
Weight 8.6kg


Multipurpose 5CFM Air Vacuum Pump 5CFM VP245 Double Stage With Solenoid Valve 0

Plug and Valtage Can Choose:



Item Description Item Description
5011 China Plug 5061 South Africa Plug
5021 China Plug 5071 Europe Plug
5031 Britain Plug 5081 Japan Plug
5041 American Plug 5091 Italy Plug
5051 Australia Plug



product photo:

Model VP215SV VP225SV VP235SV VP245SV VP260SV VP280SV VP2100SV
Flow Rate 50Hz 1.5CFM 2.5CFM 3.5CFM 4.5CFM 6CFM 8CFM 10CFM
42L/min 70 L/min 100L/Mmin 128L/Mmin 170L/Mmin 226L/Mmin 283L/Mmin
60Hz 1.8CFM 3CFM 4CFM 5CFM 7CFM 9CFM 12CFM
50L/min 84 L/min 114 L/min 142 L/min 198 L/min 254 L/min 340 L/min
Ultimate vacuum   3*10Pa 3*10Pa 3*10Pa 3*10Pa 3*10Pa 3*10Pa 3*10Pa
25 microns 25 microns 25 microns 25 microns 25 microns 25 microns 25 microns
Power 1/4HP 1/3HP 1/3HP 1/2HP 3/4HP 1HP 1HP
Lnket Port 1/4"Flare 1/4"Flare 1/4"Flare 1/4"Flare 1/4"Flare 1/4"Flare 1/4"Flare
Oil Capacity 250ml 280ml 420ml 400ml 500ml 500ml 700ml
Dimensions(mm) 270*129*216 270*129*216 320*144*232 320*144*232 370*150*250 370*150*250 390*150*250
Weight 6.1kg 6.9kg 8.3kg 8.6kg 13.6kg 14.1kg 14.6kg



FAQ:

1.Q: Can you provide samples?
A: We are pleased to provide samples for quality evaluation and market research.Just pay samples cost and Postage is OK.


2.Q: What is guarantee for your products?
A: Normally, we provide year guarantee for main parts, more easy broken parts can be provided with bulk order together.


3.Q: What is your package of foreign orders?

A :Usually outer packing by cartons,Honeycomb carton,pallet,wooden case etc.



4.Q: Do you have quality certification, what are they?
A: Yes, we have. Include CE, GB, ISO9001-2015,TI9001-2016,LVD EMC ect.



5.Q.Do you accept OEM?

A.Yes,we accept OEM, for logo,color box,manual etc.but we have quantity request
